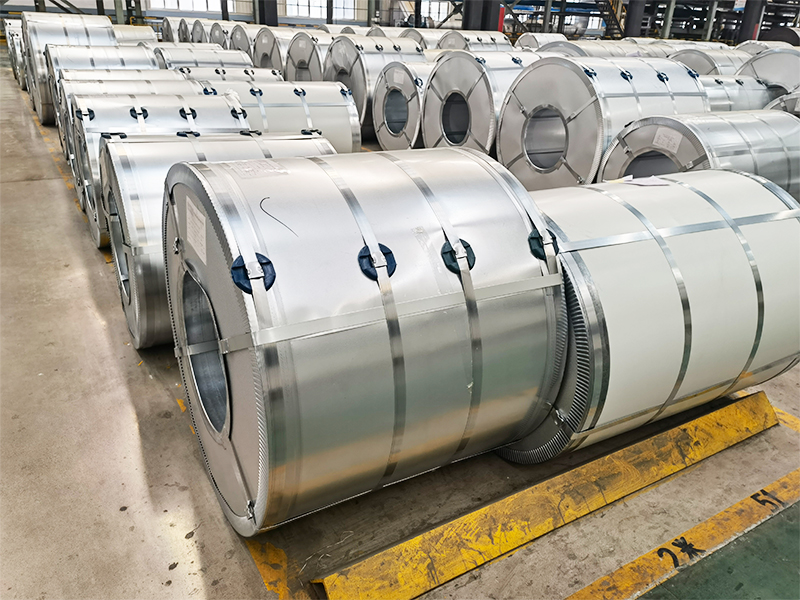

Galvanized coil: dip the steel sheet into the molten zinc bath to make the surface adhere with a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the molten zinc plating bath to make galvanized steel plate; Alloyed galvanized steel plate. This kind of steel plate is also made by hot-dip method, but it is heated to about 500 ℃ immediately after being out of the tank to form an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weldability.
Thickness(mm) | 0.12-5.0 | thickness ( g/㎡) | 50-600 |
Width(mm) | 90-1500 | Surface treatment | C/R/C5/A/O/U |
Zinc layer weight(g/㎡) | 60~275 | Range of application | Refrigerator, washing machine, air conditioning, microwave oven, lighting, TV, audio and video |
Grade | Q195, Q235 |
SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 |
SGHC SGH340 SGH400 SGH440 SGH490 SGH540 |
DX51D DX52D DX53D DX54D |
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD |
Surface treatment | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
Hardness | Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95) |
Surface Treatment | Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass |
Ordinary surface | FA | Ordinary surface |
Higher finish surface | FB | Small corrosion points, dark spots, band marks, zinc particles, passivation defects are allowed |
High finish surface | FC | No corrosion spots are allowed, but minor indentation, scratch, zinc flow ripple, minor passivation defects are allowed in a small area, and the FA surface is maintained on the other side at least |
ct number | Yield strength | Tensile strength | Elongation after fracture ratio A80(%)(>=) |
Nominal thickness |
<=0.04 | 0.04-0.06 | 0.60-1.0 | 1.0-1.2 |
SGCC | 205 | 270 | - | - |
|
|
SGCD1 | - | 270 | - | 34 | 36 | 38 |
SGCD2 | - | 270 | - | 36 | 38 | 40 |
SG340 | 245 | 340 | 20 | 20 | 20 | 20 |
SG400 | 295 | 400 | 18 | 18 | 18 | 18 |
SG440 | 335 | 440 | 18 | 18 | 18 | 18 |
